Bring premium comfort to smaller bathrooms with the Vencha Extract Prime Mini EC 4in1 Bathroom Heater, Fan, Light and Exhaust. Compact in size yet impressive in performance, this all-in-one unit combines 2000W PTC heating, a cooling fan, powerful exhaust and a bright 12W LED light to keep your bathroom warm, fresh and beautifully illuminated.
Its advanced EC motor is designed for efficient, quiet and low-maintenance operation, while the 350m³/h airflow helps clear steam and moisture with ease. With selectable 3CCT lighting in warm white, cool white and day light, an IPX2 rating and a 5 year warranty with 2 year in-home support, the Extract Prime Mini EC 4in1 delivers comfort, convenience and premium performance in a sleek, space-conscious design.
Important Note: When the exhaust function is switched on, it will override the heat function for safe and efficient operation.
Additional Features:
- Built-in Thermal Protection System
- Built-in 120 second Exhaust Run-On Timer
- Built-in 20 second Automatic Heat Cool Down Cycle
- Built-in 45-minute Safety Heat Shut-Off
- Backflow Prevention Shutter
Downloads
| Code |
5501024 |
| Model |
Extract Prime Mini EC 4in1 Bathroom Heater |
| Colour |
White |
| Material Body |
Polypropylene (PP) Housing |
| Material Face |
PC |
| Voltage |
240v |
| Motor |
EC Motor |
| Exhaust Fan |
20w |
| Airflow |
350m3/h |
| Cooling Fan |
20w |
| PTC Heating |
2000w |
| Light |
12w LED |
| Light Colour |
3CCT Selectable
(3000K/4000K/5000K)
|
| Output |
900/1000/950lm |
| Dimmable |
Non Dimmable |
| IP Rating |
IPX2 |
| Cut Out |

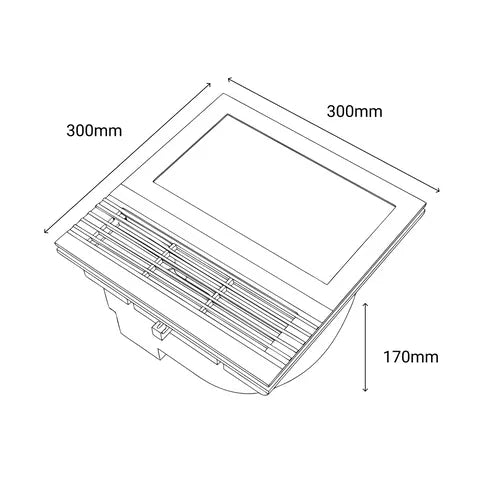

275mm x 275mm |
| Face Size |
300mm x 300mm |
| Depth |
170mm
(*195mm Min Install Depth)
|
| Duct Size |
100mm |
| Warranty |
5 Year (2 Year "In-Home" Warranty) |
| Parts Supplied: |
1 x 4 Gang Wall Switch
1 x 3m Aluminium Duct
1 x External Grille
1 x Cut Out Template
1 x Backflow Prevention Shutter
|
| Safety |
Built-in Thermal Protection System |
