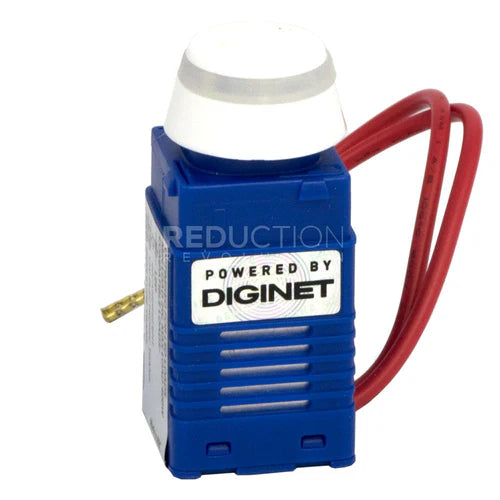

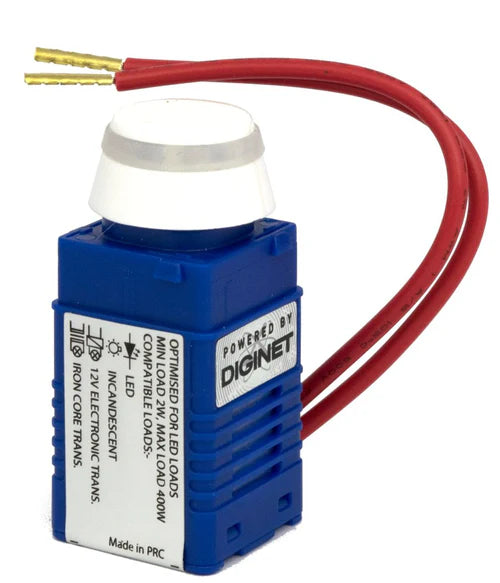

Diginet Rotary LED Dimmer

$39.99

Mains Voltage Dimmer Optimised for LED Lighting The Diginet MEDM LED Dimmer is a dedicated LED dimmer designed to achieve smooth, low range dimming down to just 2W of power. This is unlike old dimmers which typically only have a minimum load of 20W or 50W and therefore often do...

sold in last Hour

HURRY! ONLY LEFT IN STOCK

Dresses Size Chart

Dress Size Chart (Inch)
DRESSES
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 34"-35"
S 2-4 33"-34" 26"-27" 36"-37"
M 6-8 35"-36" 28"-29" 38"-39"
L 10-12 37"-39" 30"-32" 40"-42"
XL 14 40"-42" 33"-35" 43"-45"
Dress Size Chart (cm)
DRESSES
SIZE IN CM
SIZE US / CAN BUST WAIST HIPS
XS 0 78.7-81.2 60.9-63.5 86.3-88.9
S 2-4 83.8-86.3 66-68.5 91.4-93.9
M 6-8 88.9-91.4 71.1-73.6 96.5-99
L 10-12 93.9-99 76.2-81.2 101.6-106.6
XL 14 101.6-106.6 81.2-88.9 109.2-114.3

Swimwear Size Chart

Dress Size Chart (Inch)
SWIMWEAR
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 33"-34"
S 2 33"-34" 26"-27" 35"-37"
M 4 35"-36" 28"-29" 37"-38"
L 6 37"-39" 30"-32" 39"-41"
XL 8 40"-42" 33"-35" 42"-44"

Shoes Size Chart

US EURO UK AUS JAPAN CHINA
5 35-36 3 3.5 21.5 35
5.5 36 3.5 4 22 35.5
6 36-37 4 4.5 22.5 36
6.5 37 4.5 5 23 36.5
7 37-38 5 5.5 23.5 37
7.5 38 5.5 6 24 37.5
8 38-39 6 6.5 24.5 38
8.5 39 6.5 7 25 38.5
9 39-40 7 7.5 25.5 39
9.5 40 7.5 8 26 39.5
10 40-41 8 8.5 26.5 40
11 41-42 9 9.5 27.5 41

Delivery

    All orders shipped with UPS Express.

    Always free shipping for orders over US $250.

    All orders are shipped with a UPS tracking number.

Returns

    Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

    Refunds will be charged back to the original form of payment used for purchase.

    Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

    All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email:

Phone: +1 (23) 456 789

Ask a Question

Tax included. Shipping calculated at checkout.

Real time Visitor right now

Mains Voltage Dimmer Optimised for LED Lighting

The Diginet MEDM LED Dimmer is a dedicated LED dimmer designed to achieve smooth, low range dimming down to just 2W of power.

This is unlike old dimmers which typically only have a minimum load of 20W or 50W and therefore often do not work well in conjunction with energy-saving LED lights.

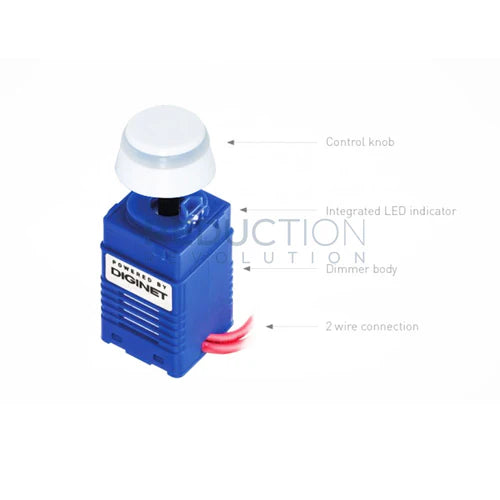

Key features:

  • Fits Australian wall switch plate apertures.
  • Minimum load rating of 2W.
  • Mechanically adjustable minimum or maximum level.
  • An integrated ON LED indicator.
  • Includes filtering to reduce load brightness variation under conditions of line voltage ripple signal injection. Translation: unlike other dimmers it is designed to minimise flicker when off peak hot water is switched on across the electricity grid.

This Diginet LED Dimmer is known to work on a range of dimmable LED lights.

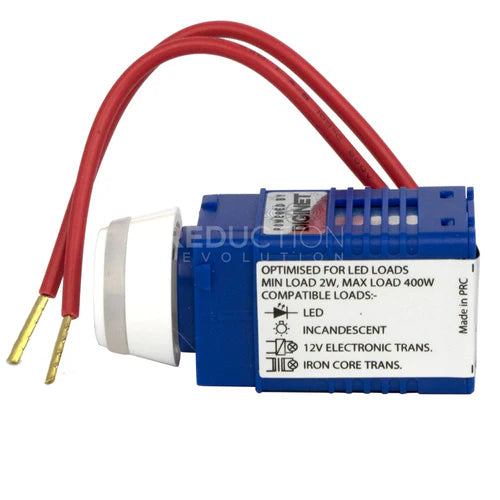

Although optimised for LED lighting loads, this dimmer also provides excellent compatibility with other common lamps types such as incandescent lamps, 12V halogen (dichroic) lamps /transformers and CFL’s.

    LED Dimmer - Installation Guide & Wiring Diagram

    This product must be installed by a licensed electrician:

    • Disconnect power to the circuit at the main switchboard.
    • Remove existing switch (and dimmer if present) from wall.
    • Connect the new LED dimmer in accordance with the wiring diagrams shown below.
    • Refit switch plate to wall and reconnect power.
    • Turn switch on and check dimming range by turning rotary dial through the range.

    LED Dimmer Wiring

    One-way Wiring Diagram

    LED Dimmer Wiring Diagram

    Two-way Wiring Diagram

    How to Tune The Diginet LED Dimmer

    The Diginet LED dimmer includes a feature which allows the minimum or maximum dimming level to be set. To achieve this, install the dimmer and connect the required lighting loads, as described above. See steps below describing how to set the minimum brightness level:

    Diginet LED Dimmer Tuning

    Specifications - Diginet MEDM LED Dimmer

    Power Range 2-400W (see data sheet below for details)
    Voltage 220-240 V AC
    Thermal Overload Protection Yes
    Short Circuit Protection Yes

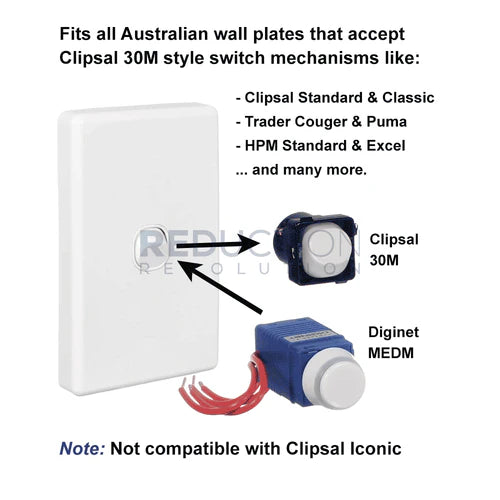

    Switch Plate Suitability All leading brands (Clipsal 30M style, see images for an examples)
    Control Rotary dial (separate on/off switch required)
    Dimensions 22mm (width) x 41mm (depth excluding dial)
    Weight 27 grams
    Installation Should be installed by an electrician
    Product Identifiers Diginet MEDM LEDsmart Adaptive Phase Dimmer (product title); 9346051003630 (barcode).
    Further Details Data Sheet (PDF), Installation Guide (PDF)
