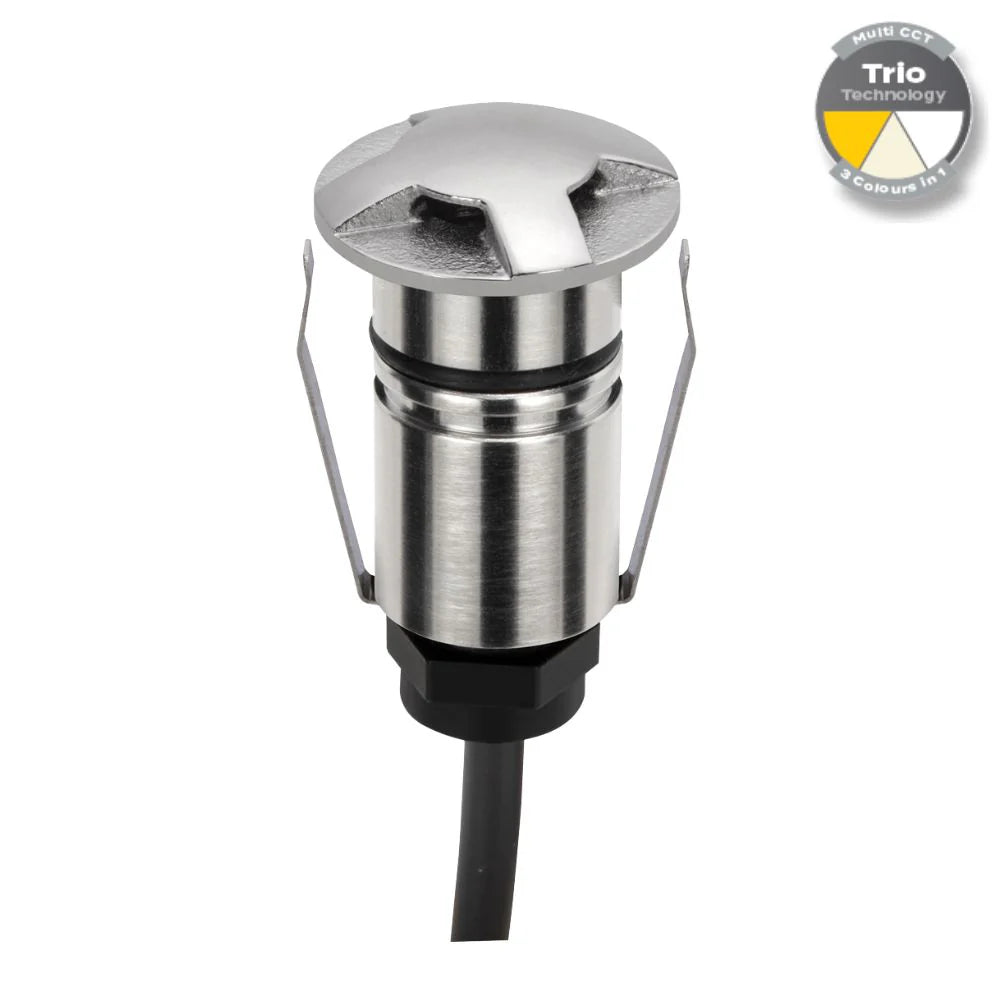

Introducing the EMIT-25 LED Inground Light Series - Stainless Steel Body and Fascia. Trim in Stainless Steel finish. The EMIT-25 is a micro inground light with a cut-out of 19mm without cannister, ideal for lighting up features where minimalistic light effects are required. Featuring a 1W LED output, with a range of different fascia plates and metalware colour options.

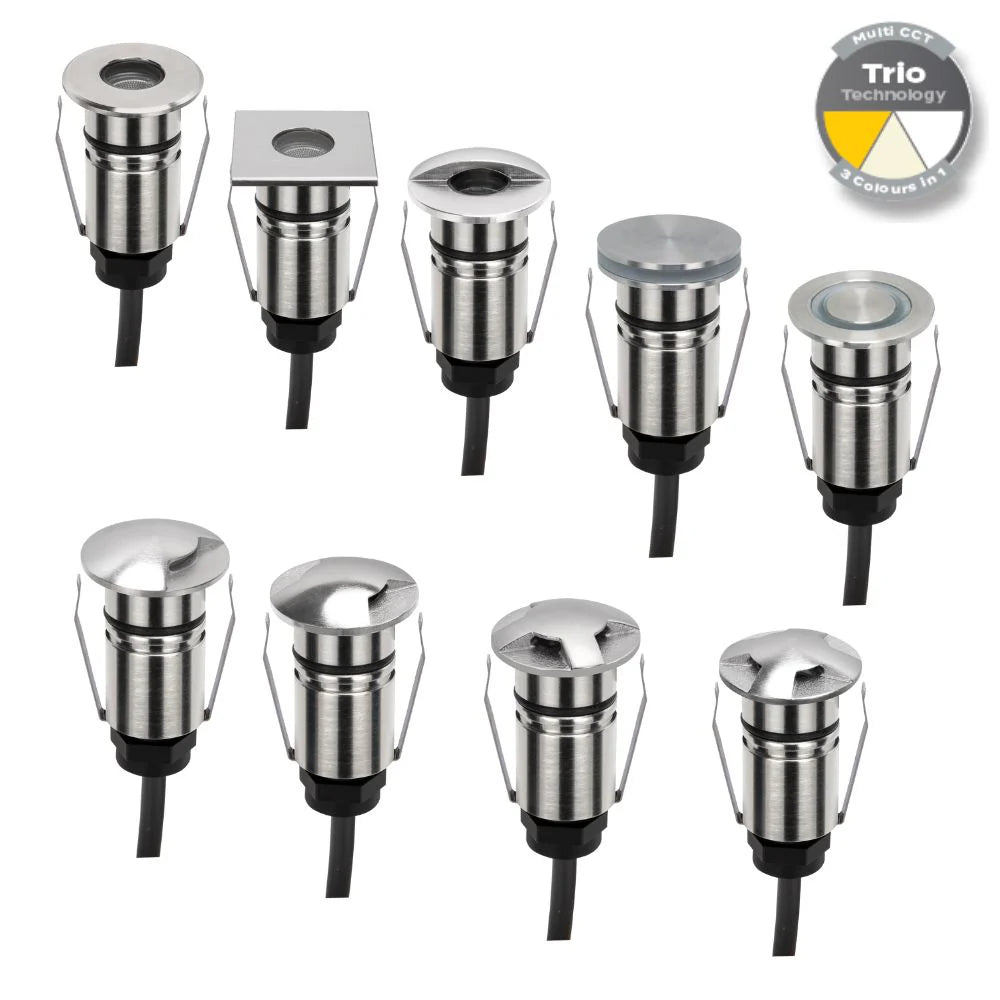

Choose from Round Open, Square Open, Eyelid and Halo fascia's, as well as the multiway fascia's available in 1WAY, 2WAY, 3WAY, and 4WAY. Metalware colour options range from Black, Stainless Steel, Antique Brass and Brushed Brass. Tri-Colour Selectable at wiring installation stage: Choose from 3000K Warm White, 4000K Neutral White and 5500K White colour temperature options. Functional with 12V DC and 24V DC Constant Voltage LED Drivers. Wire in Parallel.
Optional extra accessories such as narrow to medium Beam Angle Lens as well as Honeycomb and frosted diffusers are also available. Part of a family of different sizes to suit most inground lighting applications. Backed by a 5 Year Replacement Warranty.
- Requires: 12V or 24V DC Constant Voltage LED Driver (not included)
-
Cutout: Ø19mm (without cannister)
-
With H2O Water Stop Valve - Stops Water Syphoning into fitting

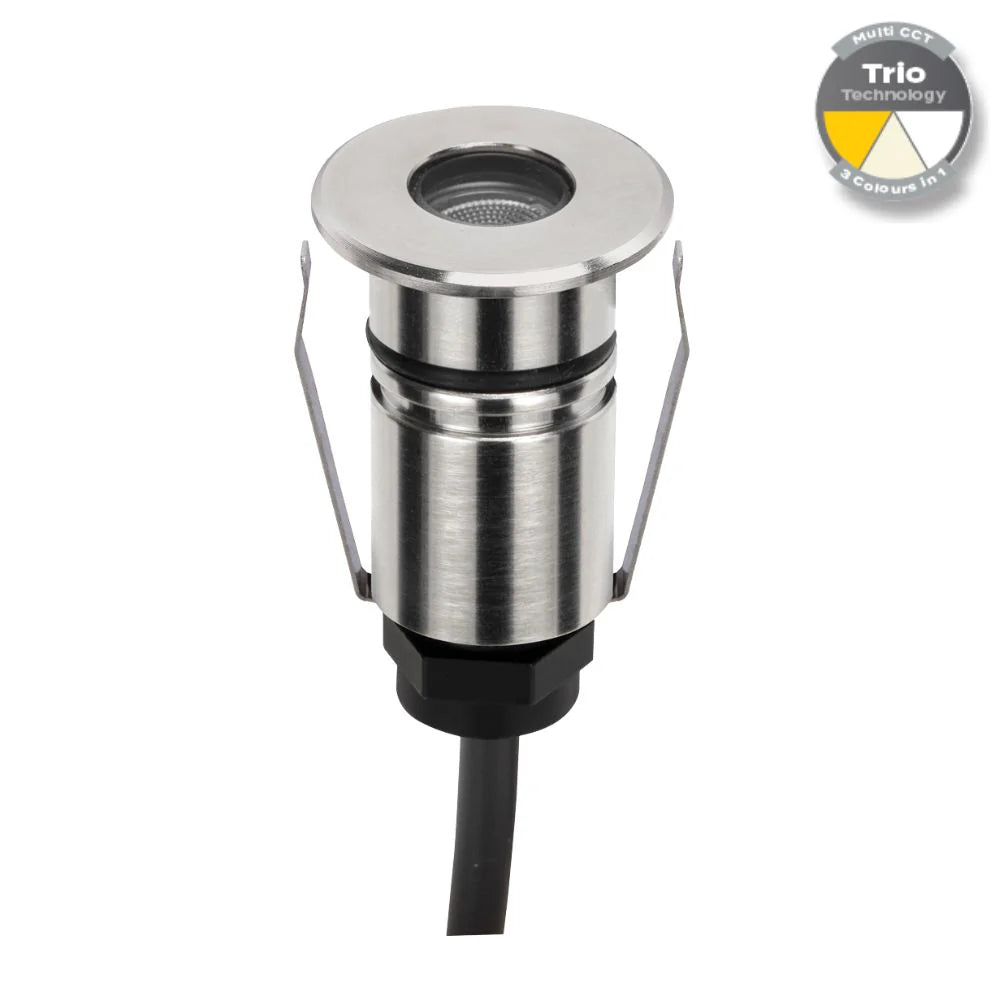

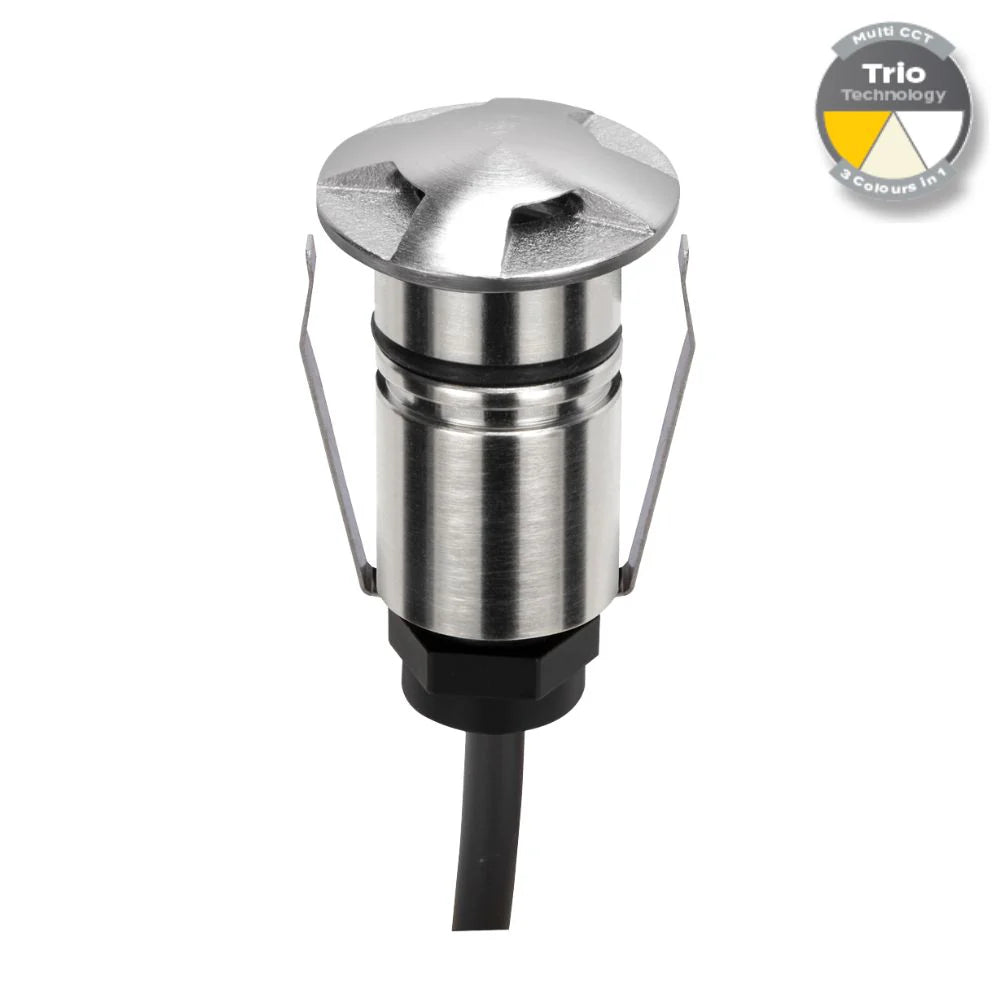

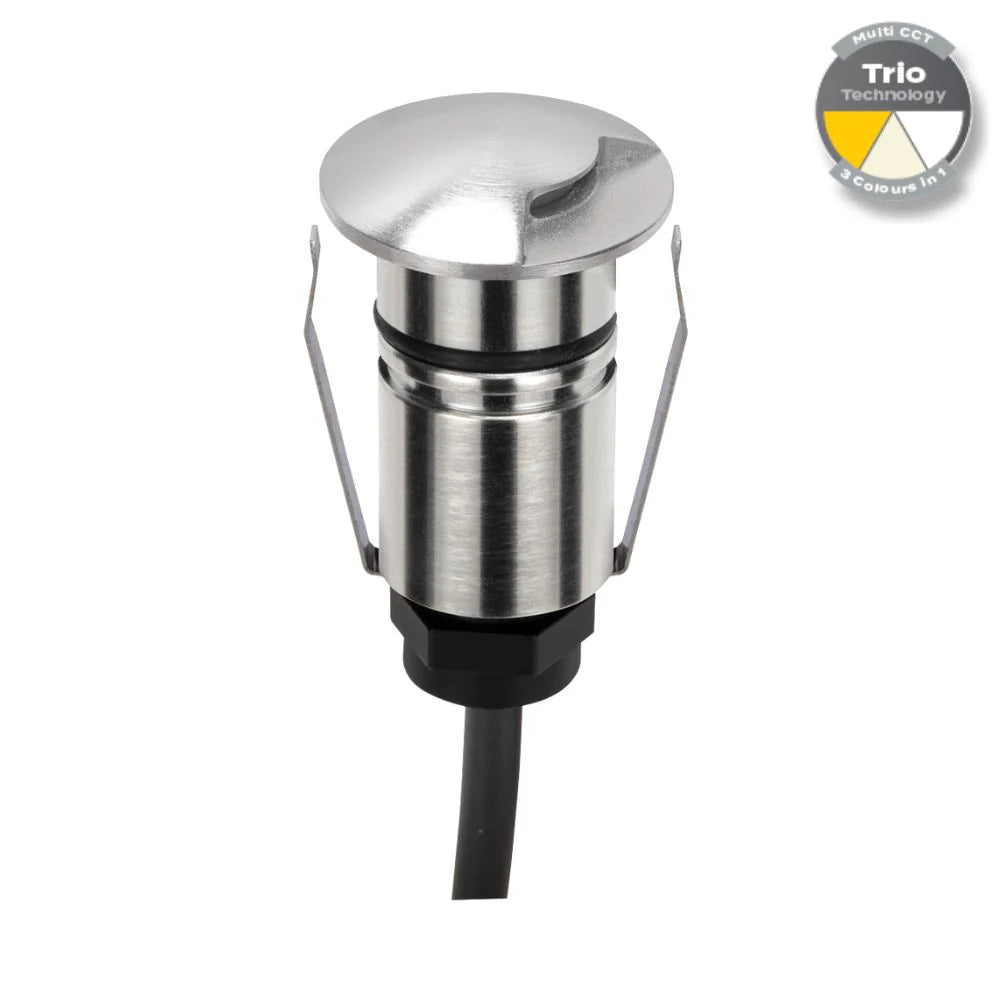

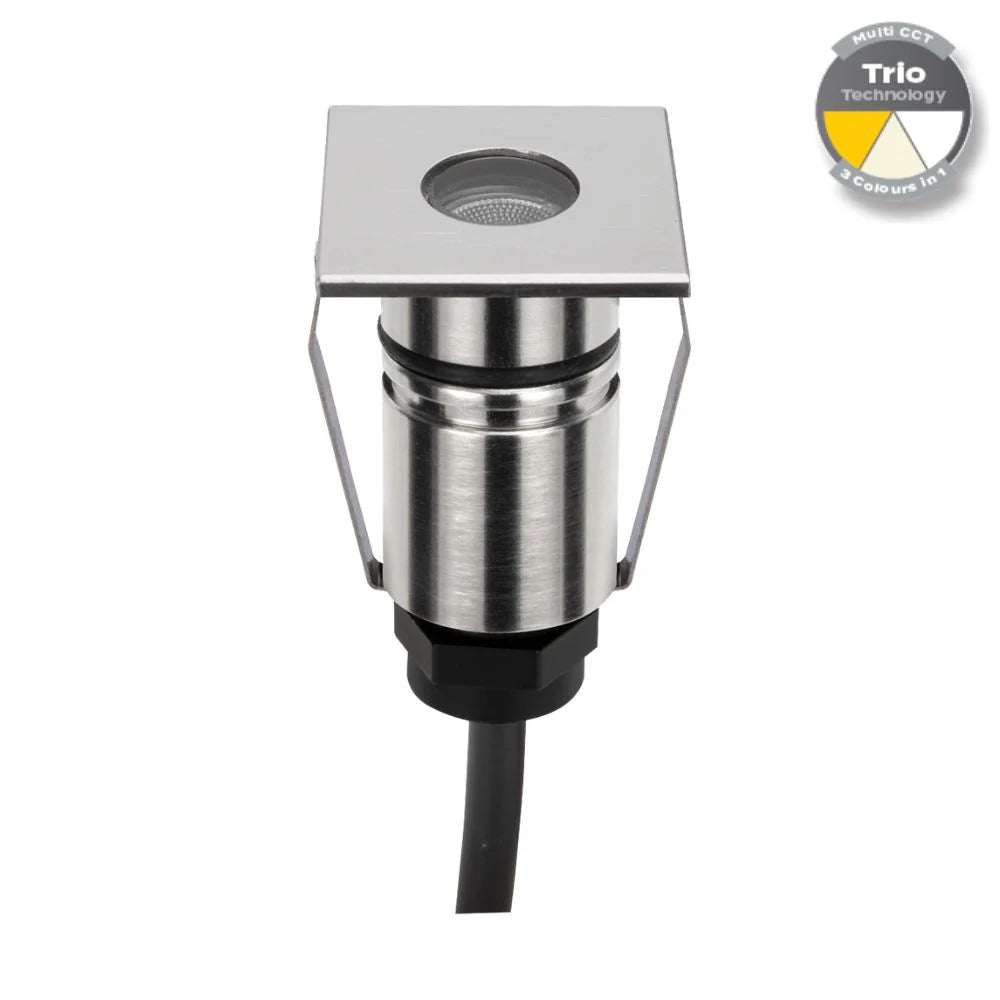

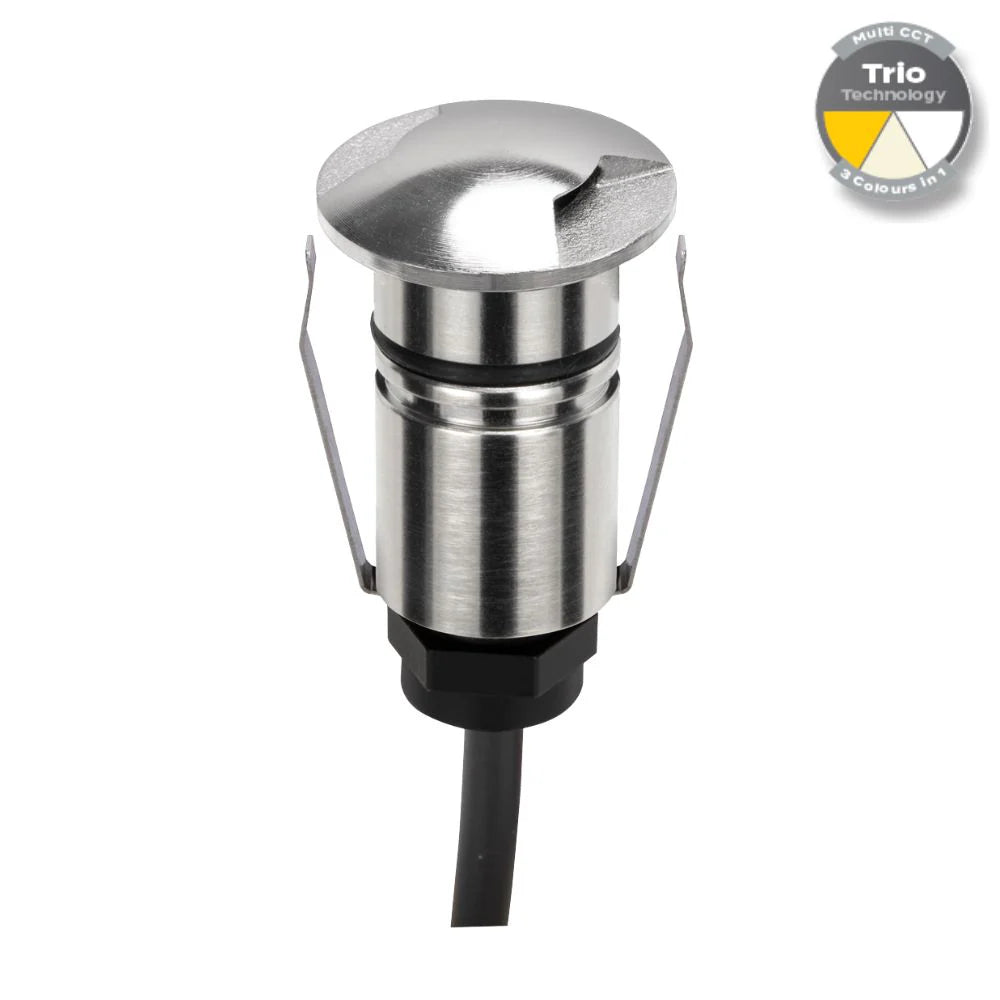

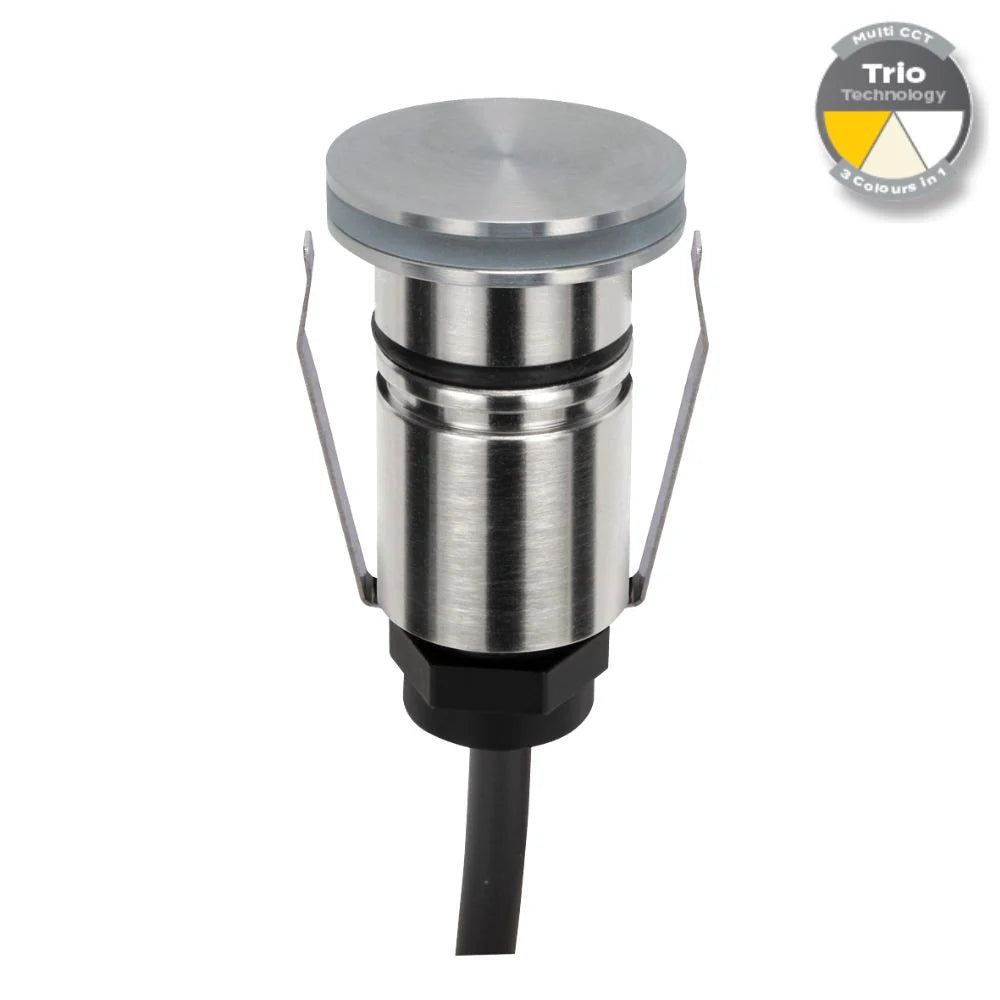

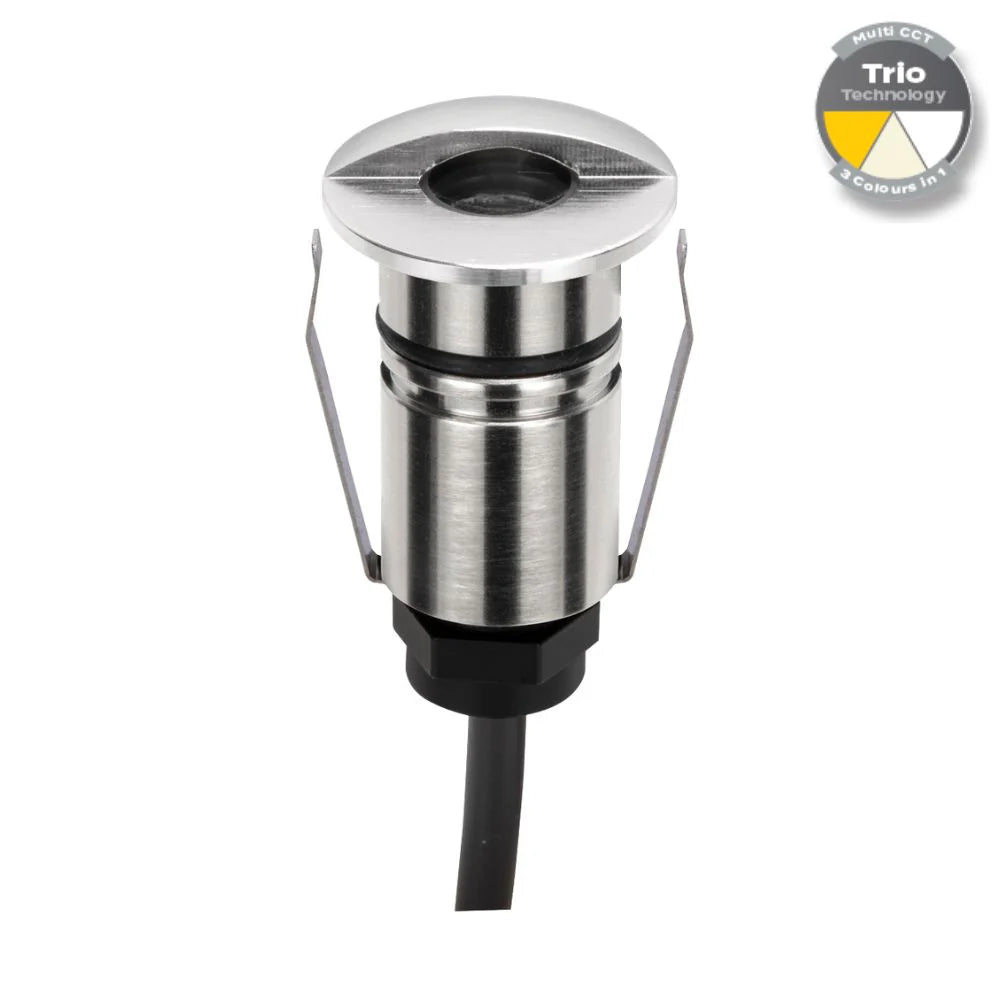

- Available in Round Open, Square Open, Eyelid and Halo fascia's, as well as the multiway fascia's available in 1WAY, 2WAY, 3WAY, and 4WAY.
- 5 Year Replacement Warranty
Specifications:
- Input Voltage: 12V/24V DC (Constant Voltage)
- Power (W): 1W LED
- IP rating (IP): IP67
- CRI: >90
- Beam Angle: 19° - 36° - 60° (36° Standard)
- Lumen Output: RND OPEN - SQR OPEN - EYELID: 3000K 46Lm, 4000K 51Lm, 5500K 55Lm
- Lumen Output: 1-WAY: 3000K 1.3Lm, 4000K 1.3Lm, 5500K 1.3Lm
- Lumen Output: 2-WAY: 3000K 1.2Lm, 4000K 1.2Lm, 5500K 1.2Lm
- Lumen Output: 3-WAY: 3000K 2.2Lm, 4000K 2.2Lm, 5500K 2.2Lm
- Lumen Output: 4-WAY: 3000K 3.1Lm, 4000K 3.1Lm, 5500K 3.1Lm
- Lumen Output: HALO: 3000K 14Lm, 4000K 14Lm, 5500K 14Lm
- Lumen Output: RING: 3000K 17Lm, 4000K 17Lm, 5500K 17Lm
- Colour Temperature: 3000K - 4000K - 5500K (Selectable at wiring stage)
Dimensions:
- Overall Diameter: Ø25mm
- Depth: 45mm
- Cutout: Ø19mm (without cannister)
- Cutout: Ø24mm (with cannister)
