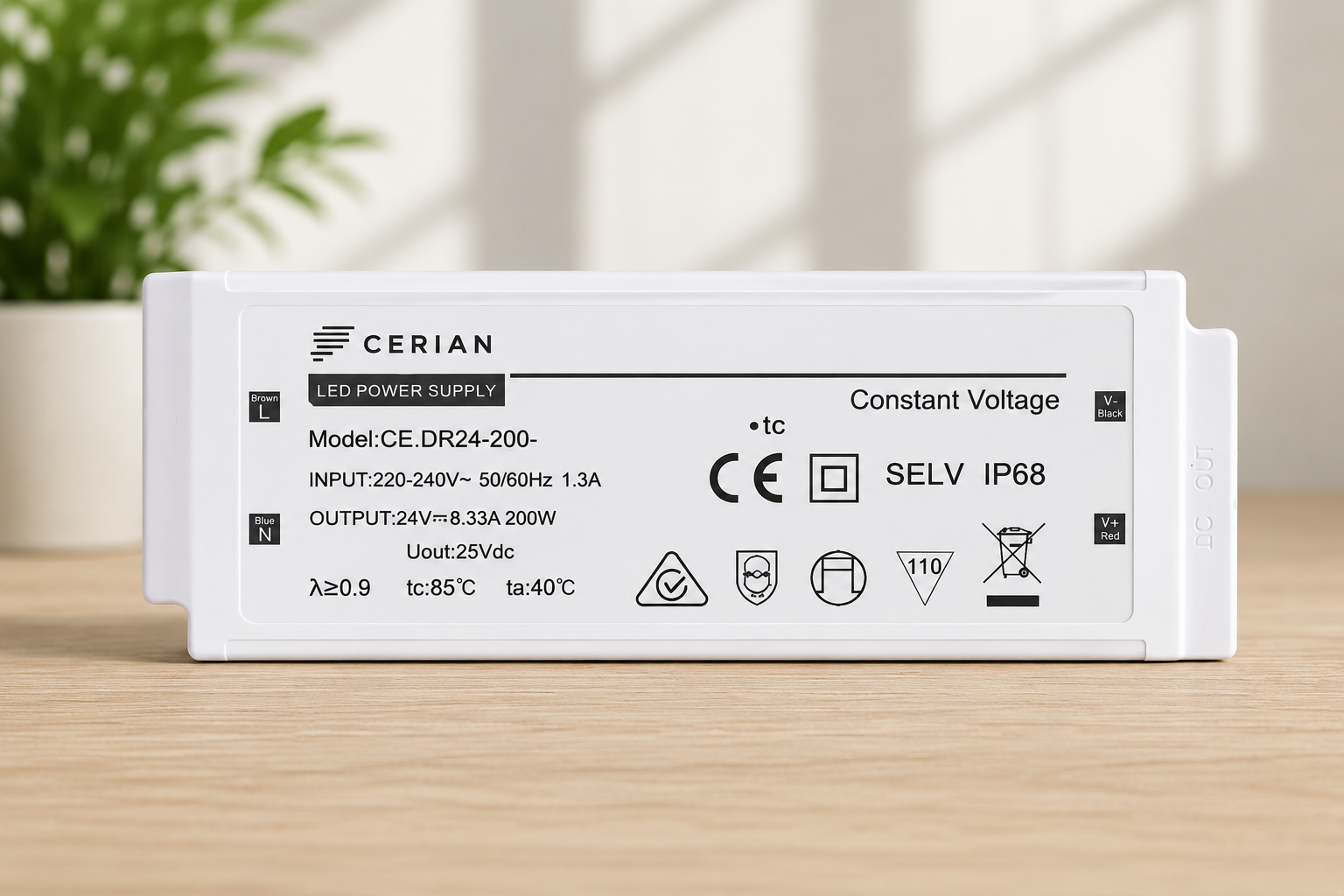

Reliable 200W LED Driver, Power Supply for LED Strip Lighting
The CERIAN CE.DR24-200-IP68 24V 200W LED Driver is a high-quality, constant voltage power supply designed to deliver reliable and efficient power to 24V LED strip lights and other low-voltage LED lighting systems. With a slim design, short-circuit protection, and Australian 2-pin plug, it’s ideal for safe and simple indoor and outdoor installations.
Key Features
-
Constant Voltage 24V DC Output – Perfect for 24V LED strip lights, LED modules, and decorative lighting.
-
200W Power Capacity – Provides stable output for up to 8.33A load.
-
Plug & Play Convenience – Comes pre-fitted with a 1200mm flex cable and Australian 2-pin plug (2×0.5mm²).
-
Safe and Reliable – Includes short-circuit protection and full isolation for user safety.
-
Slim & Compact Design – Easy to conceal in cabinets, ceilings, or behind fixtures.
-
Outdoor Rated (IP68) – Designed all outdoor areas
-
Non-Dimmable Model – Provides constant brightness with no flicker.
-
Dimensions – 189x65x35mm
Technical SpecificationsCERIAN 24V 200W LED Driver
| Specification |
Details |
| Brand |
CERIAN |
| Model Number |
CE.DR24-200-IP68 |
| Input Voltage |
220–240V AC, 50/60Hz |
| Output Voltage |
24V DC (constant voltage) |
| Output Power |
200W max |
| Output Current |
8.33A (approx.) |
| Efficiency |
>85% (typical) |
| Power Factor |
>0.9 |
| Dimming |
Non-dimmable |
| Protection |
Short-circuit protection |
| Isolation |
Electrically isolated design |
| IP Rating |
IP68 – Indoor and Outdoor |
| Cable |
1200mm flex with AU 2-pin plug (2×0.5mm²) |
| Operating Temperature |
-20°C to +45°C |
| Housing Type |
Slim switch-mode power supply |
Applications
Use this 24V LED driver for:
-
24V LED strip lights (COB, SMD, RGB, or single colour )
-
Under-cabinet or display lighting
-
Signage and architectural lighting
-
Indoor and Outdoor feature lighting and decorative installations
